Product Description

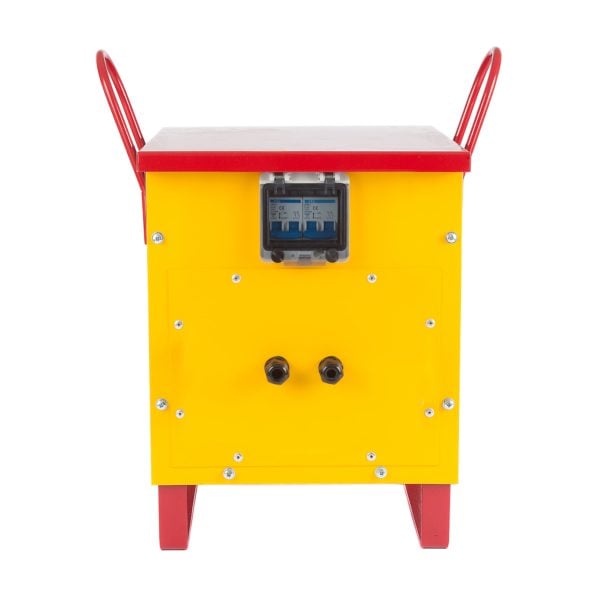

240V single-phase (1ph) site transformer.
3kVA continuous and 4kVA intermittent.
2 x 20 mm cable glands for lighting applications.
Designed for a 230~240V 50 Hz 1ph input via 25 mm cable entry.
110V output centre tapped to earth (55/0/55V).
Full input protection via 1 pole MCB.
Output protection via type D double pole MCB.
IP44 output sockets designed to BS 4343.
Designed to EN 61558-1: 2005.
CE marked.
Image for illustration purposes only.
For full technical data contact our sales team
