Click here to view the PDF Datasheet
This product was made in the UK
Product Description
415V two-phase (2ph) site transformer.
3kVA continuous and 4kVA intermittent.
1 x 110V 32A socket.
Designed for a 400~415V 50 Hz 2ph input via 25 mm cable entry.
110V output centre tapped to earth (55/0/55V).
Full input protection via 2 pole MCB.
Output protection via type D double pole MCB.
IP44 output sockets designed to BS 4343.
Designed to EN 61558-1: 2005.
CE marked.

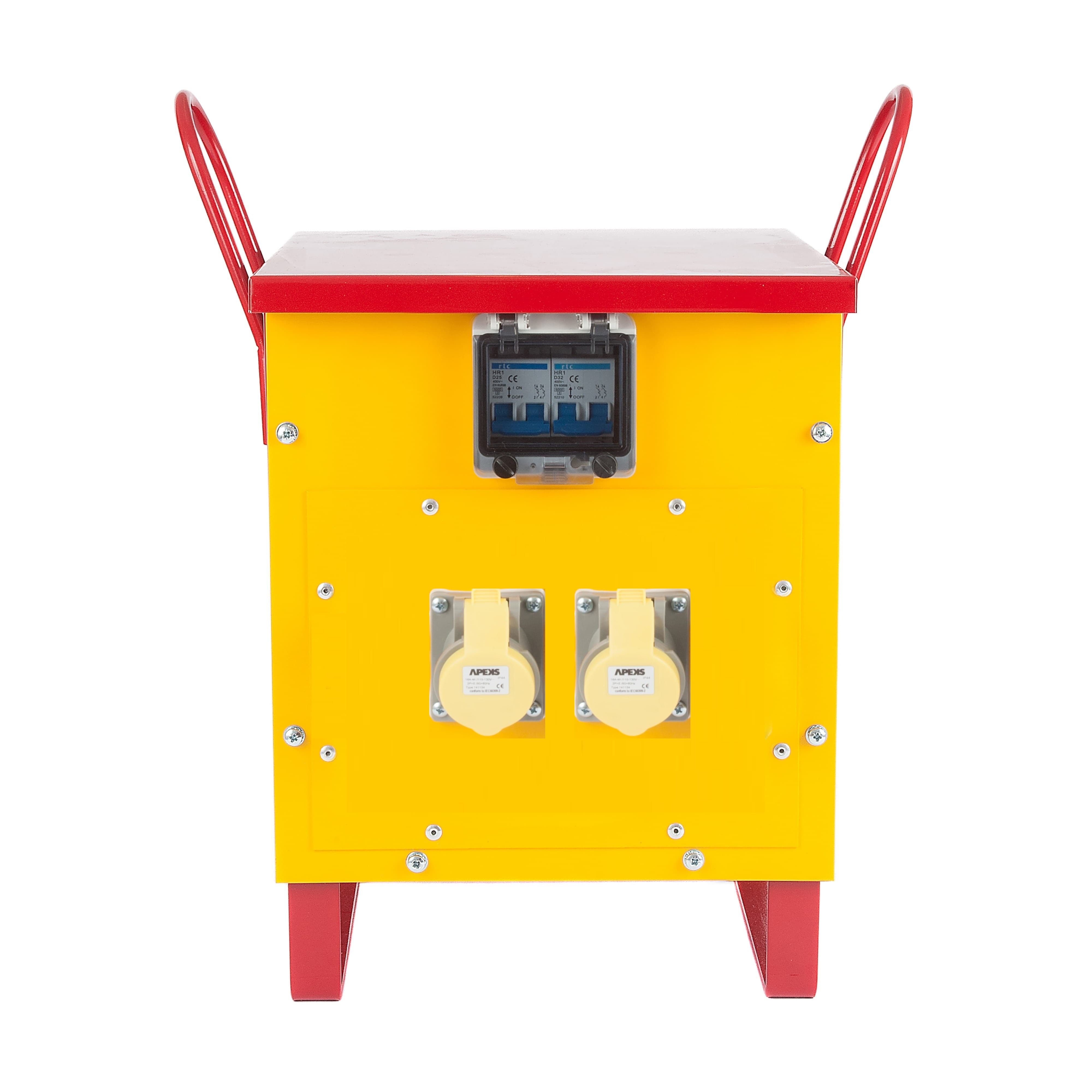

Image for illustration purposes only.
For full technical data contact our sales team
